Actuators & Stages
We developed these actuators and stages for our own monochromators. They are now available as products in their own right.
At a glance
- High vacuum (HV) and ultra-high vacuum (UHV) compatibility was the design goal from the start.
- Vacuum step motors, HV or UHV grade, with aluminium alloys throughout.
- Stainless steel ball screws with ceramic balls, and vacuum compatible limit switches.
- Tested and calibrated with our metrology suite.
- UHV cleaning followed by bake out to 120°C.
- RGA 0-200amu gas scans to measure outgassing after bake-out.
- High Vacuum stepper motors rated for 5×10-8 mbar (after water bake); Ultra High Vacuum motors rated to 10-11 mbar.
- Optional encoders, feed-through cables and connectors.
In this range
Vacuum preparation keeps outgassing to a minimum suitable for HV or UHV operation, but please note that no vacuum actuator or stage is outgassing free.
-

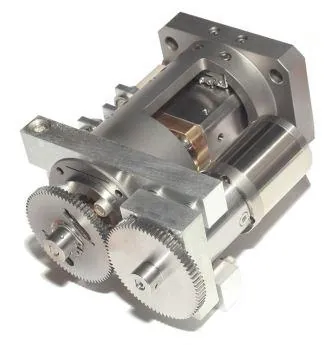

High Performance Hybrid Actuator
Coarse sub-micron precision plus nanometre level positioning from an inline piezo.
- Load
- 175N linear load
- Coarse
- Up to 6mm, sub micron repeatability
- Fine
- 60µm range, <10nm repeatability
-

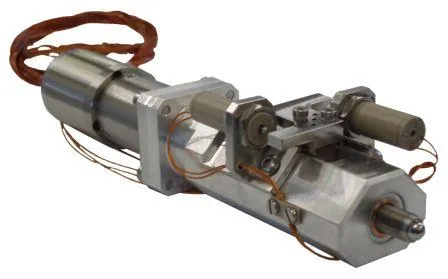

Low Load Actuator
Developed with cost and compactness of footprint in mind. HV and UHV compatible.
- Load
- 100N linear load
- Resolution
- 0.03μm
- Repeatability
- 0.5μm
-

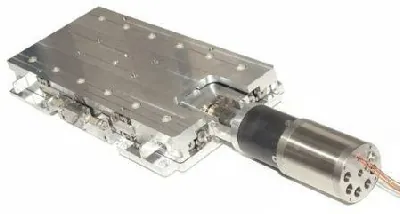

Linear Slides
Slides with very low pitch and yaw errors, of the order of <10µrad per 10mm linear travel.
- Travel
- 25mm up to 150mm in 25mm increments
- Repeatability
- <0.15µm
- Load
- Up to 200N
-
Custom Engineered Slides
Double Laue monochromator, Australian Synchrotron
Slides designed and built to a specific requirement, such as a high load slide with 560mm travel in an HV environment.
- Load
- >2000N
- Repeatability
- <0.15µm
- Yaw error
- <1µrad per 10mm linear travel
-

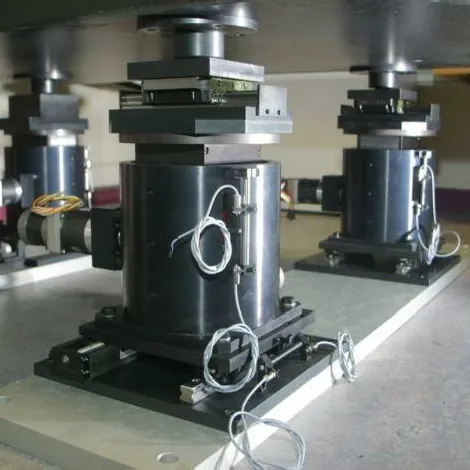

Vertical Jacks
Compact guided jacks with very high mechanical stiffness, used on experimental tables, detector mounts, mirror supports and monochromator supports.
- Load
- 1 tonne & 2.5 tonne capacities
- Travel
- To 150mm
- Repeatability
- ±0.2μm
-

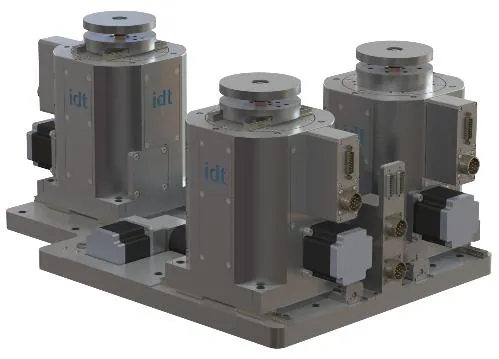

Compact Manipulator System
A miniature version of our high load experimental table, for sample environments with limited space.
- Footprint
- Typically 375 mm x 600 mm x 270 mm
- Load
- Up to 500 kg
- Motions
- Pitch, roll, yaw, height & horizontal translation
-
Accessories
Actuators and stages can be supplied with instrumentation feed-through cables and accessories.
- Cables
- Kapton ribbon cables; radiation resistant Kapton cables
- Feed-throughs
- D-type or C-type multi-pin, in Conflat flange configurations
- Connectors
- Local Peek connectors and mating air side connectors
