Complete Beamlines

We deliver complete beamlines as turnkey projects, from the optical concept through to commissioning on site.

At a glance

  • Detailed beamline design and layout.
  • Optical component design, including FEA and ray tracing.
  • Supply of monochromators, mirrors, power management components and diagnostics.
  • Radiation safety components and experimental equipment.
  • Controls hardware and EPICS software.
  • Testing, installation and commissioning.
Discuss your projectProduct guide

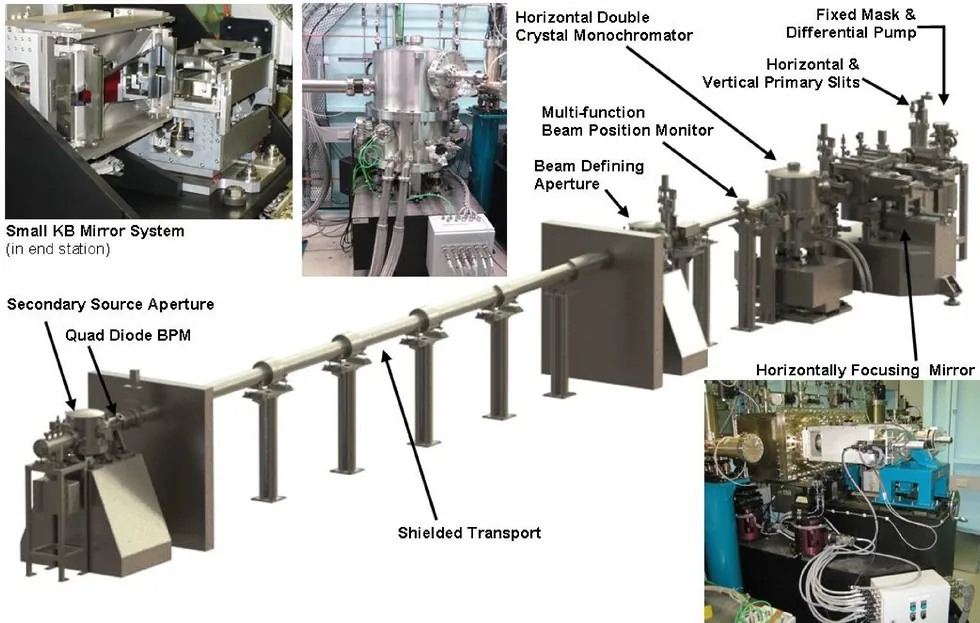

XFM beamline layout with labelled fixed mask and differential pump, primary slits, double crystal monochromator, horizontally focusing mirror, beam position monitor, secondary source aperture, quad diode BPM and Small KB mirror system
The XFM beamline at the Australian Synchrotron, designed, built and installed by IDT.

Example beamlines

  • Render of the XFM beamline layout, from the front-end components along the beam transport to the end station

    X-Ray Fluorescence Microprobe Beamline

    Australian Synchrotron

    A turnkey project: all beamline optical components, beam transport and the control system, with on-site installation and full commissioning.

    Controls
    44 axis motion control & EPICS software
    Stability
    Measured stability of 18 nrad
    Focusing
    Small KB mirrors (240mm long) in helium environment
  • GSECARS first optics enclosure layout with labelled dual canted primary slit system, upgraded DCM, air bearing DCM, double horizontal mirror system, pinhole aperture, collimator and beam stop

    GSECARS Sector 13 Upgrade

    Advanced Photon Source

    IDT designed and built all the first optics enclosure components, plus other beamline components, for the upgrade to a canted undulator layout.

    Supplied
    Canted primary slits, DCM upgrade, air bearing DCM, double horizontal mirror system
    Stability
    Measured beamline stability of 54 nrad

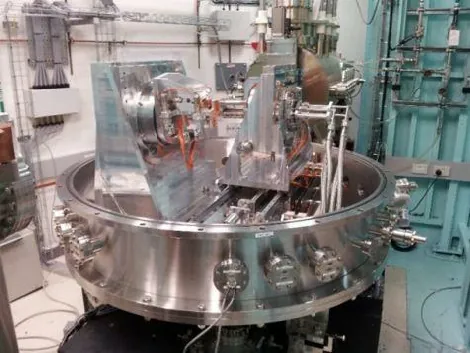

  • Double Laue-crystal monochromator installed on the Imaging and Medical Beamline at the Australian Synchrotron

    Imaging & Medical Beamline

    Australian Synchrotron

    Beam conditioning equipment for a superconducting multipole wiggler with a total power output of >20kW, and a Double Laue Monochromator.

    Length
    150m long beamline
    Slits
    Absorbing >7kW per blade
    Energy
    16keV - 100keV

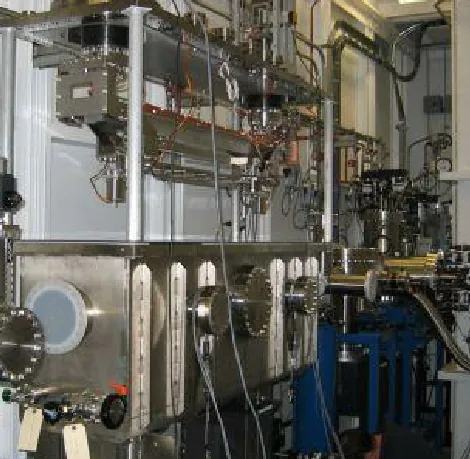

  • Beamline components installed on the HXMA beamline at the Canadian Light Source

    Hard X-Ray Micro Analysis Beamline

    Canadian Light Source

    Designed, built and installed by IDT: a multi-function wiggler beamline used for techniques such as XAFS and powder diffraction.

    Mirrors
    Collimating mirror and double-toroidal focusing mirror
    Also
    Primary slits, filters, beam diagnostics and experimental tables

  • HPCAT Sector 16

    Advanced Photon Source

    Full design of the sector, from the optical concept through to engineering solutions, including hutch design. Later upgraded to a canted undulator layout.

    Supplied
    Large offset monochromator, high resolution monochromator, large KB mirror system, 3 metre spectrometer
    Upgrade
    Beam conditioning rated for 200mA ring current operation
Next step
