Mirror Systems
Vertically and horizontally focusing mirror systems, cooled so that very little vibration reaches the mirror optic.
At a glance
- Large mirror systems in horizontal and vertical deflecting geometries, with mirror lengths from 0.6m to 1.4m.
- Differential two moment bender with a closed-loop force bar, with resolution to 0.01%R.
- Water cooling mechanically decoupled from the mirror via liquid gallium grooves in the optic.
- Pitch control to <1µrad with 0.1µrad resolution, from large through-vacuum linear actuators.

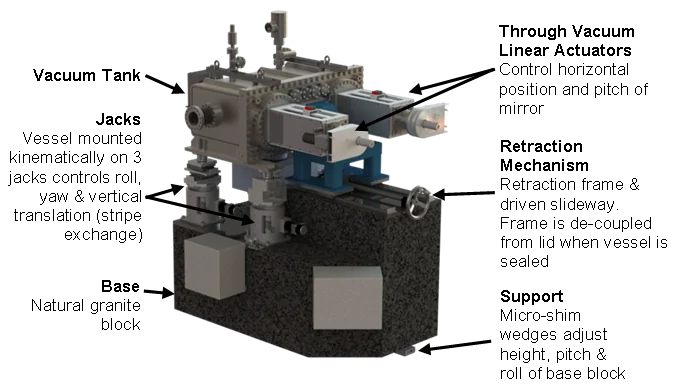

- Ultra stiff vacuum tank that forms an integral mounting platform, on a granite base block.
- UHV compatible to <10-9 mbar.
- Optional encoders on all motorised axes.
In this range
-
Large Mirror Systems1
Developed and proven at GSECARS, Sector 13 APS
A high-precision differential moment bender on a multi degree of freedom platform, in horizontal and vertical geometries.
- Length
- 0.6m to 1.4m
- Bend radius
- R=∞ to <1km
- Yaw
- ±10mrad range, 0.3μrad resolution
-

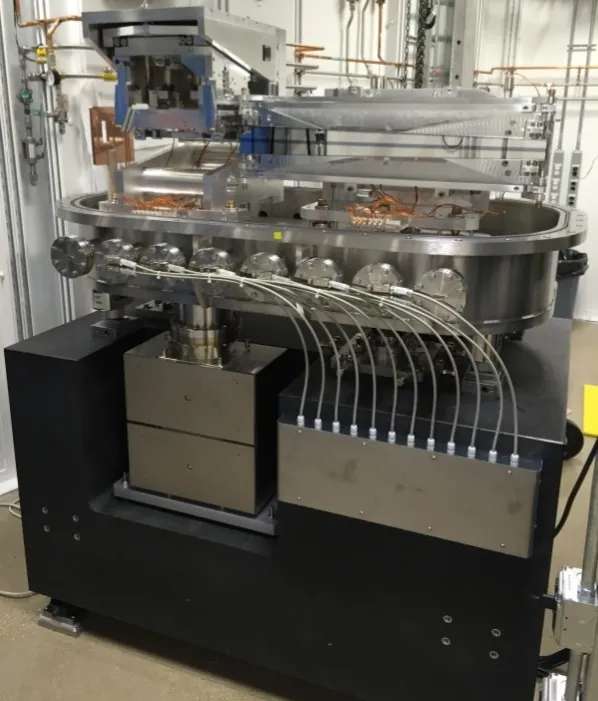

Medium KB Mirrors
Dynamic Compression Sector at the APS
An evolution of the Small KB system, with trapezoidal mirrors in a two moment elliptical bender for sub-μm focusing.
- Horizontal
- 840mm length mirrors
- Vertical
- 380mm length mirrors
- Variants
- Vacuum and helium
-

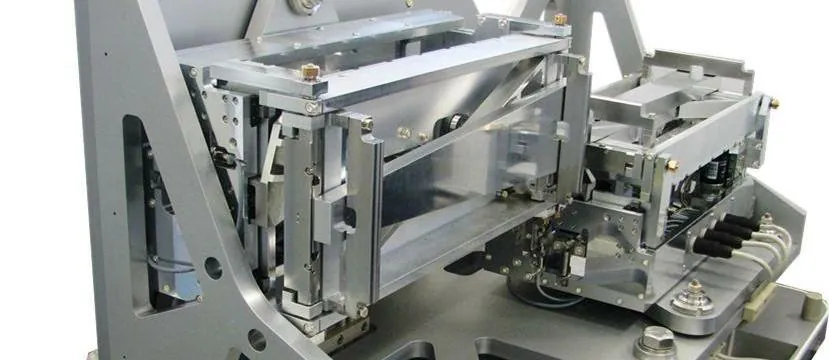

Small KB Mirror System
Dynamic figuring with sub-µrad slope error and a highly repeatable sub-µm focused spot size.
- Length
- Mirror lengths 170mm - 320mm
- Coatings
- Silicon, Rhodium, Platinum
-

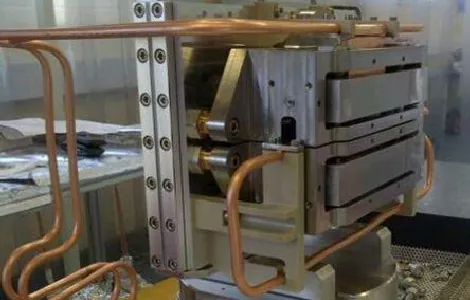

Ultra-Low Strain Mirror Mount
I08 STXM, Diamond Light Source
A kinematic, thermally isolated mount. The deformation induced by mounting the mirror was measured at Diamond Light Source as only a few nanometres.
- Mirror
- 200mm length, scalable
- Heat load
- Up to 100W absorbed
- Vacuum
- UHV compatible to 5x10-10 mbar
1 Built under licence from the University of Chicago.
