Beam Conditioning

Slits, filters, masks and apertures that define the beam and manage its power, from undulator beamlines to superconducting wigglers.

At a glance

  • Angled water-cooled copper blades (OFHC or Glidcop) with a tungsten hard edge defining the beam.
  • One motor sets the slit gap and a second scans the slits in the beam.
  • Actuator resolution to 0.1µm, with 5µm repeatability in open loop and <1µm with an encoder.
  • Thermally isolated design for thermal stability and minimal drift.
  • Canted undulator slits with a bypass aperture for the adjacent canted beam.
  • Very high heat load slits absorbing >10kW per blade.
  • Graphite filters up to 500µm thick, absorbing >6kW.
  • Slit blade design optimised for the power requirements of the beamline.
Discuss your projectProduct guide

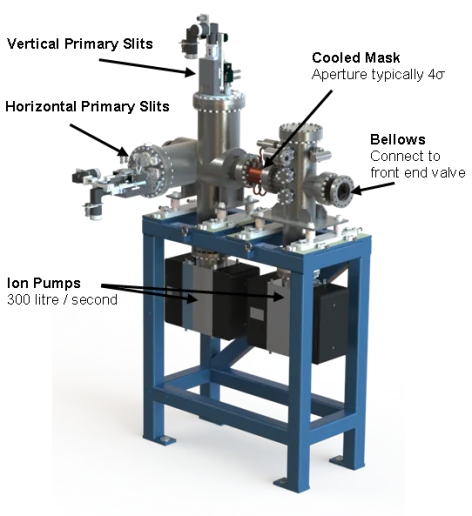

Fixed mask and differential pump assembly with labelled vertical and horizontal primary slits, cooled aperture, bellows and ion pumps
Fixed mask and differential pump: a windowless interface to the front end.

In this range

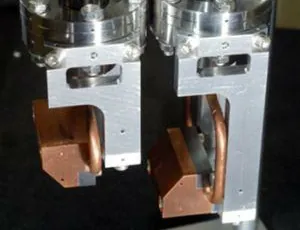

  • Primary slit blades in water-cooled copper on their through-vacuum mounts

    Primary Slits

    Centre opening and scanning undulator slits. L-aperture slits are available for high-power applications and canted undulator geometries.

    Resolution
    0.1µm
    Repeatability
    5µm open loop, <1µm with an encoder
    L-aperture
    ±5mm horizontal and vertical travel

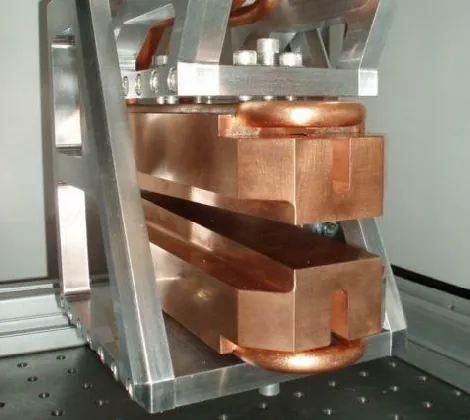

  • Copper blades of the canted undulator slits

    Canted Undulator Slits

    GSECARS and HPCAT at the Advanced Photon Source

    Designed for APS 200mA ring current operation, with a tungsten hard edge thermally decoupled from the Glidcop body.

    Translation
    ±4mm, 0.5μm /step
    Slit gap
    4mm to -0.2mm
    Limits
    Meets APS Glidcop limits of 300°C and 400MPa

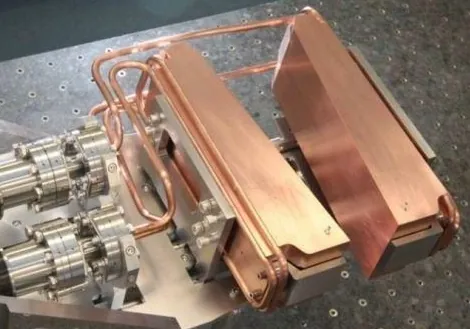

  • Water-cooled copper blades of the very high heat load horizontal slits

    Very High Heat Load Slits & Filters

    Imaging and Medical Beamline, Australian Synchrotron

    Designed for a superconducting multipole wiggler with white beam power densities >120 W/mm2.

    Horizontal
    >10kW per blade
    Vertical
    >7kW per blade
    Filters
    5 paddles, each with 3 graphite foils and a bypass aperture
  • Render of a water-cooled pinhole aperture with copper cooling tubes

    Power Management Apertures

    GSECARS at the APS; IMBL at the Australian Synchrotron

    Masks and apertures in water-cooled Glidcop for beam conditioning and power management.

    Pinhole
    Absorbs >2kW; exit aperture 1.1mm × 0.7mm
    Fixed mask
    Limits the wiggler fan to 5mrad, absorbing >8kW
  • Fixed mask and differential pump assembly with labelled vertical and horizontal primary slits, cooled aperture, bellows and ion pumps

    Fixed Mask & Differential Pump

    XFM at the Australian Synchrotron; HPCAT and GSECARS at the APS

    A water-cooled fixed mask in a windowless interface to the front end, with differential pumping across the mask via a pair of ion pumps.
