Beam Diagnostics

Beam position monitors that work in white, pink and monochromatic beam, and can feed position back to the optics upstream.

At a glance

  • Multi-use BPM for undulator beamlines that works in white, pink and mono beam.
  • Tungsten vane monitor, doped CVD diamond screen, YAG screen and bypass aperture in a single water-cooled assembly.
  • BPM head mounted at 45° to the beam, so the screen can be imaged with a high resolution CCD camera.
  • Through-vacuum linear translation drive for different modes of operation.
  • Quad diode BPM for intensity and beam position measurements in monochromatic beam.
  • Positional feedback to piezos in upstream monochromators and mirrors.
  • EPICS driver for the CCD camera.
  • Monitors also available for the wider beam fans of wiggler beamlines.
Discuss your projectProduct guide

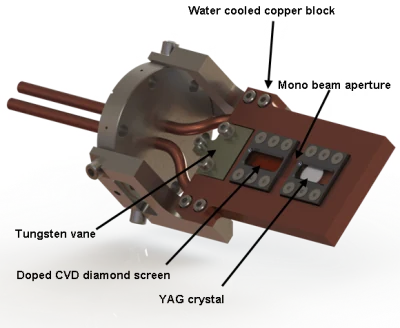

Beam position monitor head: a water cooled copper block with labelled tungsten vane, doped CVD diamond screen, YAG crystal and mono beam aperture
Multi-use BPM head.
Quad diode beam position monitor render with labelled photodiodes, foil selector, YAG crystal and foil selector actuator
Quad diode BPM.

In this range

  • Beam position monitor head: a water cooled copper block with labelled tungsten vane, doped CVD diamond screen, YAG crystal and mono beam aperture

    Multi-Use Beam Position Monitor

    GSECARS Sector 13 at the APS; XFM at the Australian Synchrotron

    One water-cooled assembly for undulator beamlines, on a through-vacuum linear translation drive.

    Beam
    White, pink and mono
    Screens
    Doped CVD diamond and YAG
    Mounting
    Head at 45° to the incident beam

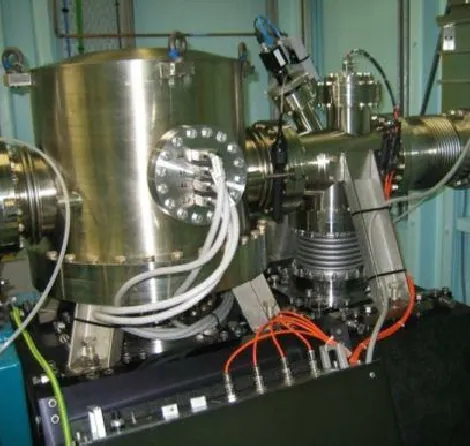

  • Quad diode and secondary source aperture assembly installed on the XFM beamline at the Australian Synchrotron

    Quad Diode & Fluorescent Screen BPM1

    XFM at the Australian Synchrotron

    A motor-driven selector with up to 4 foils plus a bypass aperture, 4 diodes downstream, and a YAG screen with CCD camera and optics.

    Energy
    4keV - 25keV
    Foils
    Nickel, chromium, titanium & copper
    Base
    Granite block, measured amplification factor of 1.0

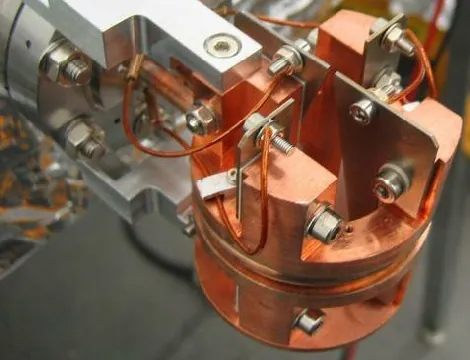

  • Tungsten vane beam position monitor in its copper mount

    Wiggler Beamline Monitors

    Monitors for the wider beam fans of wiggler beamlines, including cooled fluorescent screens on pneumatic actuators and tungsten vane monitors on motorised actuators.
